1. Labulk-0307 Plastic Materials Apparent Density Tester, Bulk Factor Tester and Pourability Tester Manual – Installation

Date: 2016-04-26 / Author: labulkcomadmin / Category: Labulk-0307 Manual

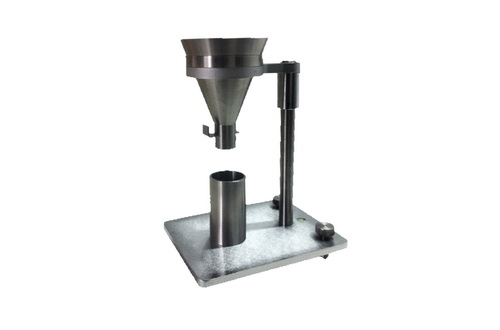

Assemble the apparatus as picture below, put the measuring cup in the axis of the funnel orifice.
Adjust the stand screws and make the bubble in center to level the instrument.
Put the height control (38 mm) between the funnel orifice and the measuring cup, then fix the pivoting ring arm and remove the height control.
Close the small end of the funnel with the flat strip, now the installation is finished.
