AIR-200 STANDARD AIR JET SIEVE

AIR-200 Standard Air Jet Sieve meets higher requirement on air jet sieving method. Login on system with Admin password, put test sieve on the instrument, set No. of test, time of test, pressure of test and weigh sample and input data either manually or via optional RS-232 balance.Touch timer to start instrument and vacuum automatically, adjust the pressure if required. When stop re-weigh remaining sample and input data as beginning.The operating system analyzes and calculates the results automatically and output on an internal printer.

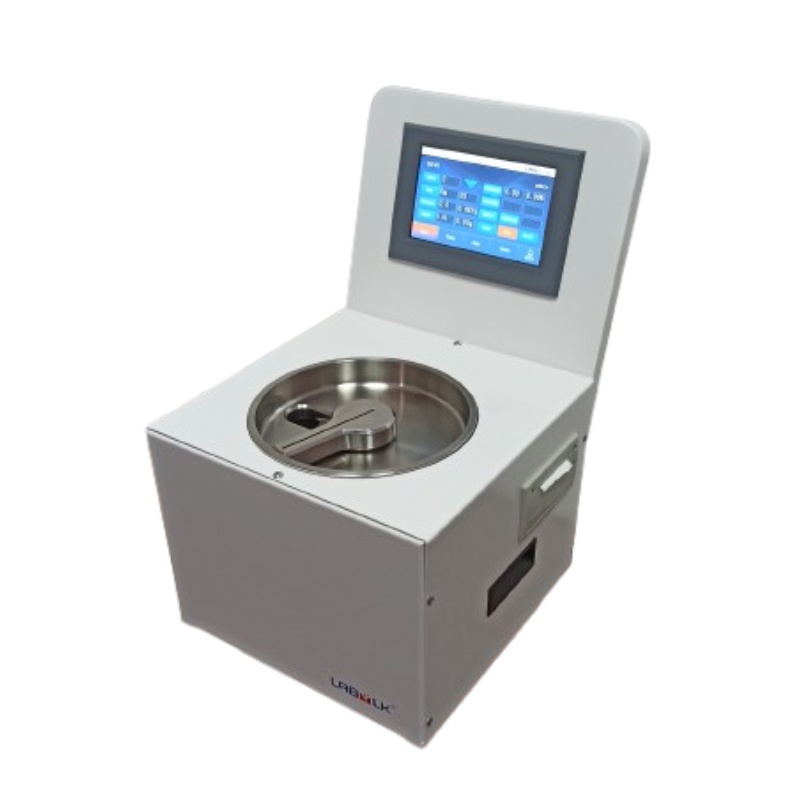

AIR-200 Air Jet Sieve

SPECIFICATIONS

• Size range: 15-5000 micrometer
• Accuracy: <1%
• Repeatability error: <1%
• Sieving time: 0-9999 min 99s
• Negative pressue: 0–10 KPa
• Motor speed: 18 rpm
• Log method: pass word
• Data input: manually or by optional balance
• Data calculation: Auto
• Result output: printer
• Operating system version: FS-AO(filtering/sieving/analysis/output)
• Size: L35 x D35 x H58 cm/11.8 Kgs/110-220V/50-60Hz/10A/70W

PRINCIPLE

Advanced electronic turbine generator and negative force work together to give powerful negative air jet that drives the particles from the nozzle then upwards until collision with the top sieve cover. De-agglomerated particles is re-vacuumed back towards the sieve cloth. Smaller particles pass and accumulate in vacuum or sample collector, bigger particles stays on sieve cloth. A satisfying sieving process is thus accomplished. Size limit with one sieve or particle size distribution with multiple sieves.

APPLICATIONS

• Dry powder particle sizing
• Especially for those powders hard to sieve or can be sieved but with bad sieve results due to small density, agglomeration, floating, mesh aperture blocking or electro-static
