ANGLE OF REPOSE

HMKFlow 329 is an apparatus of angle of repose usp 1174 used to measure the angle of repose of pharmaceutical powders. Powder angle of repose is part of powder flow test. HMKFlow 329 conforms to US Pharmacopoeia Chapter USP 1174 and European Pharmacopoeia Chapter EP 2.9.36. It also meets ISO 4324and agricultural fertilizers(ISO 8398). The angle of repose is the angle of the conical pile produced when a granular sample is poured onto a horizontal surface (test platform). HMKFlow 329 is supplied with optional Windows software to obtain the test results in a second.

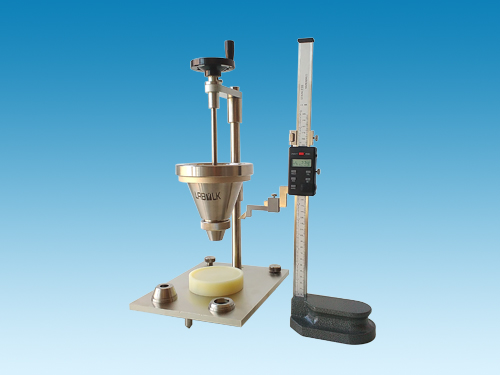

HMKFlow 329 Angle of Repose Powder Flowability Tester (P/N 32998)

FEATURES

• USP/EP/ISO conformance
• Angle of repose testing
• Powder flow rate testing
• 3 funnels with different diameter cope with different samples
• Automatic calculation from height to angle of repose
• Automatic determination on the powder flowability level

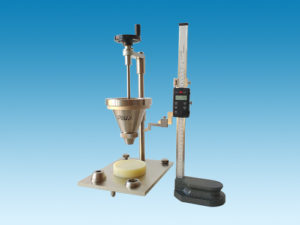

HMKFlow 329 Angle of Repose Powder Flowability Tester – Iron support is an optional part

SPECIFICATIONS

• Test method: angle of repose and powder flow rate
• Physical characteristics: angle of repose/flow rate/powder flowability
• Angle of repose measurement range: 0-90 degrees
• Funnel angle: 40 degrees
• Funnel volume: 450 mL
• Funnel height: 150 mm
• Funnel weight: 2000 g

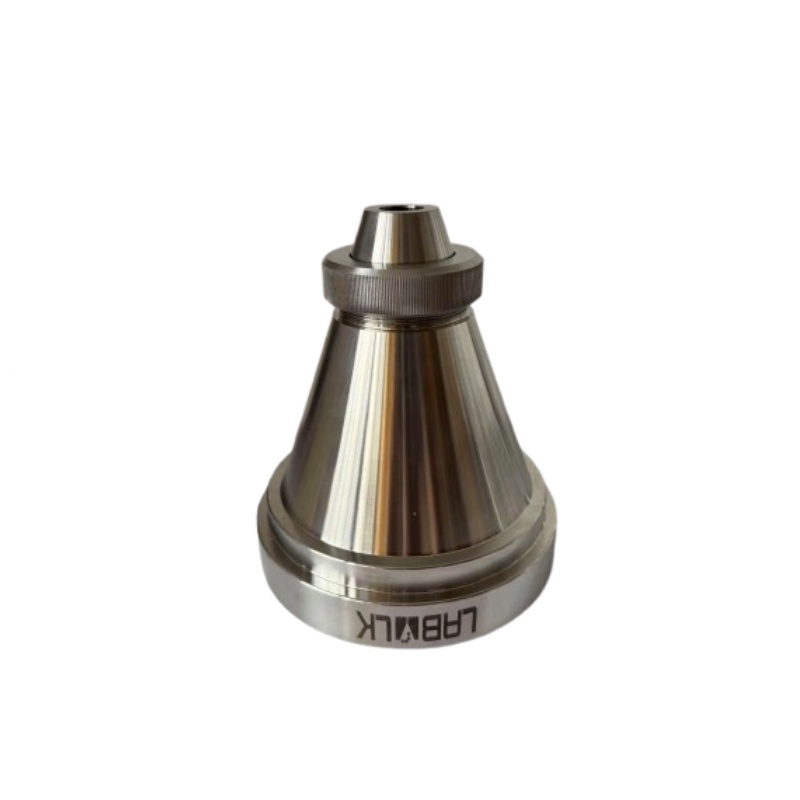

• Main funnel top/bottom diameter: 110/30 mm

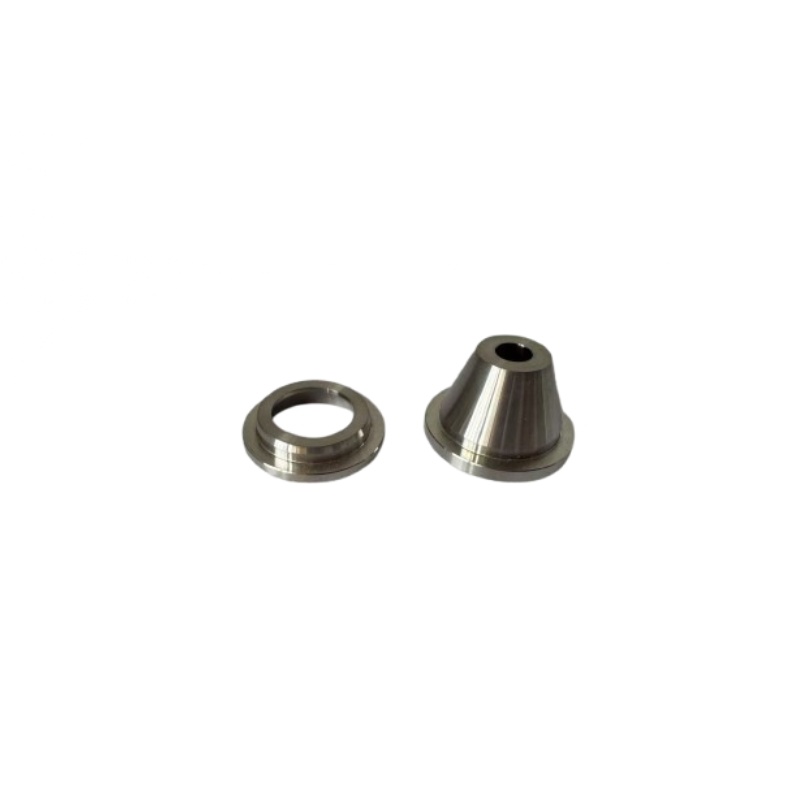

• Auxiliary top/bottom diameter: 30/10 mm; 30/15 mm; 30/25 mm;
• Powder flow height: 75 mm
• Test platform diameter: 100 mm
• Height gauge accuracy: 0.05 mm
• Result processing mode: automatic calculation, automatic determination
• Result output mode: intelligent software, printout
• Size: 20x26x40cm/8kg

PRINCIPLE

Pour sample into the funnel and stir the sample if necessary, the powder produce a cone on the test platform and use a height gage to measure the height of the pile. The tangent of the angle of repose (in degrees) can be determined by reading off the height of the powder cone in mm from the digital display of the height gage and dividing it by 50. Pour quantitative weight of sample to main funnel connected to auxiliary funnel (in different diameter selected as per sample), measure the flow rate of sample when it flow out of the funnel.

PACKING LIST

• main funnel 1 ea
• auxiliary funnel 3 ea
• height gauge 1 ea
• test platform 1 ea
• funnel support 1 ea
• stirring rod 1 ea
• sample spoon 1ea

APPLICATIONS

• Automobile and aerospace
• Pharmaceutical
• Mineral and metal powders
• Food
• Chemicals
• Plastics and rubbers
• Other applications
