AS-200 Scott Volumeter (Version UPS 616)

AS-200 Scott Volumeter Price USD 399

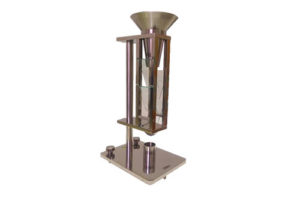

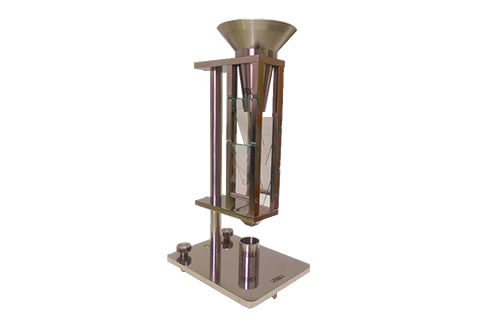

AS-200 Scott Volumeter (Version UPS 616) is a bulk density apparatus consists of a top funnel. The funnel is mounted over a baffle box containing four glass baffle plates over which the powder slides and bounces as it passes. It measure the bulk density of pharmaceuticals stringently according to USP 616 method II – Measurement in a Volumeter.

Scott Volumeter is a typical apparent density tester being widely used in powder physical property testing. It is used to determine the apparent density/bulk density (scott density) of free-flowing powders.

AS-200 Scott Volumeter conforms to ASTM B 329, ASTM B 873, ISO 3923 – 2, EP and  USP Chapter 616 II

A Scott Volumeter consists of a base and support, an upper funnel, 4 glass baffles, a bottom funnel, a density cup with calibrated volume 25cc etc.

AS-200 Scott Volumeter is designed for bulk powder applications such as paint and pigment, pharmaceutical and metal powder etc.

AS-200 Scott Volumeter Price USD 399

  • Top funnel: stainless steel,conforms toASTM/ISO/USP/EP
  • Baffle box: aluminum
  • Baffle plate: 4 glass plates
  • Bottom square funnel: stainless steel
  • Density cup: 25 cm3, volume calibratedwith a calibration certificate
  • Stand: iron
  • Dimension: W150 x D200 x H420 mm/5kgs
AS-200 Scott Volumeter Price USD 399

AS-200 Scott Volumeter Price USD 399

  • Measurement of the mass of acertain quantity of powder which ina loose condition exactly fills a cup of known volume(25cc)
  • The loose condition is obtained byusing an apparent density tester,when filling the cup, by cascading the powder over a series of inclined plates (glass) in a Scott Volumeter..
  • The ratio between the mass andthe volume represents the apparent This is the definition of the apparent density obtained by apparent density tester.

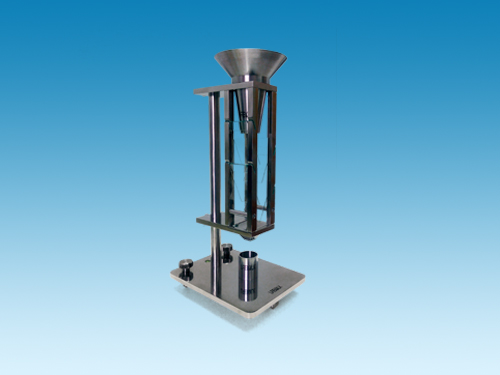

2017 Design AS-200 Scott Volumeter



labulk-0302-scott-volumeter-version-ups-616

old-design-as-200-scott-volumeter-version-ups-616

AS-200 Scott Volumeter Price USD 399
