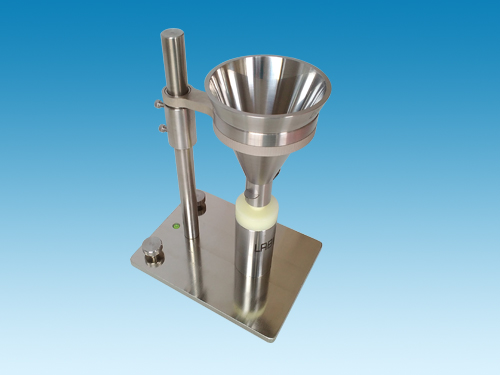

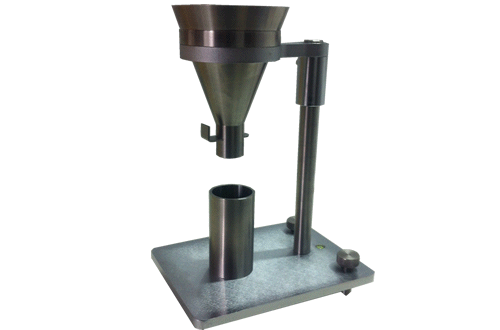

LABULK 307 Plastic Materials Apparent Density and Bulk Factor Apparatus

LABULK 307 Plastic Materials Apparent Density Apparatus is manufactured according to ASTM D 1895 Standard Test Method for Apparent Density, Bulk Factor, and Pourability of Plastic Materials-Test Method A. It is used to measure the apparent density of the fine granules and powders that can be poured readily through a small funnel. It can also be used to measure the bulk factor and pourability of plastic materials.

LABULK 307 Plastic Materials Apparent Density Apparatus

LABULK 307 Plastic Materials Apparent Density and Bulk Factor Apparatus

labulk-307-plastics-materials-apparent-density-bulk-factor-and-pourability-apparatus

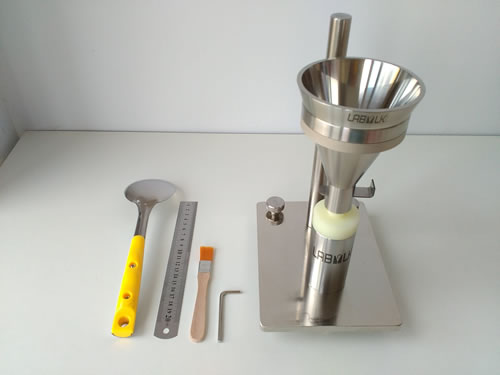

APPARATUS

– Funnel, having a 9.5-mm diameter opening at the bottom, and mounted at a height 38 mm above the measuring cup, as shown in ASTM D 1895 A
– Measuring cup, A cylindrical cup of 100 cm capacity,having a diameter equal to half the height
– Straightedge
– Support
(Configuration is Subject to Quotation)

PRINCIPLE

The weight per unit volume of a material, including voids inherent in the material as tested is apparent density.

MANUFACTURER

HMKTest is a world leading manufacturer of Apparent Density Testers, all the apparent density testers are designed and manufactured according to international standards on cost-effective basis.
