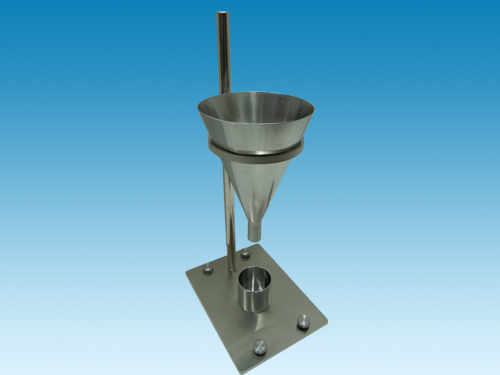

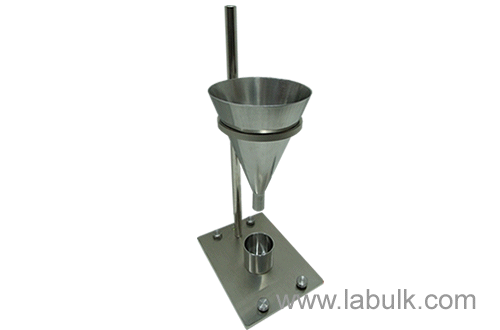

LABULK 321 Abrasive Macrograins Bulk Density Apparatus
ABRASIVE MACROGRAINS BULK DENSITY APPARATUS
LABULK 321 Abrasive Macrograins Bulk Density Apparatus is used to measure the bulk density of abrasive grains-macrograins.
LABULK 321 Abrasive Macrograins Bulk Density Apparatus (P/N 32198)
labulk-321-abrasive-macrograins-bulk-density-apparatus
PRINCIPLE
Bulk density of abrasive macrograins is determined by mass of a given volume of the abrasive grains, expressed in grams per cubic centimeter(g/cm³).
Fill a 250 mL beaker to the top with the abrasive grain to be tested. With the funnel outlet closed and the measuring cylinder centered under the outlet of the funnel, pour the grain into the funnel. Open the outlet of the funnel and allow the grain to fall freely until the funnel is empty. Avoid vibrations throughout this procedure. Strike off the excess grain from the measuring
cylinder using a straightedge, making four movements perpendicular to each other. This operation prevents compaction of the abrasive grain in the cylinder. Avoid vibrations or other shocks. Weigh the grains contained in the measuring cylinder.
APPARATUS
-Stand
-Funnel
-Blocker
-Measuring cylinder
